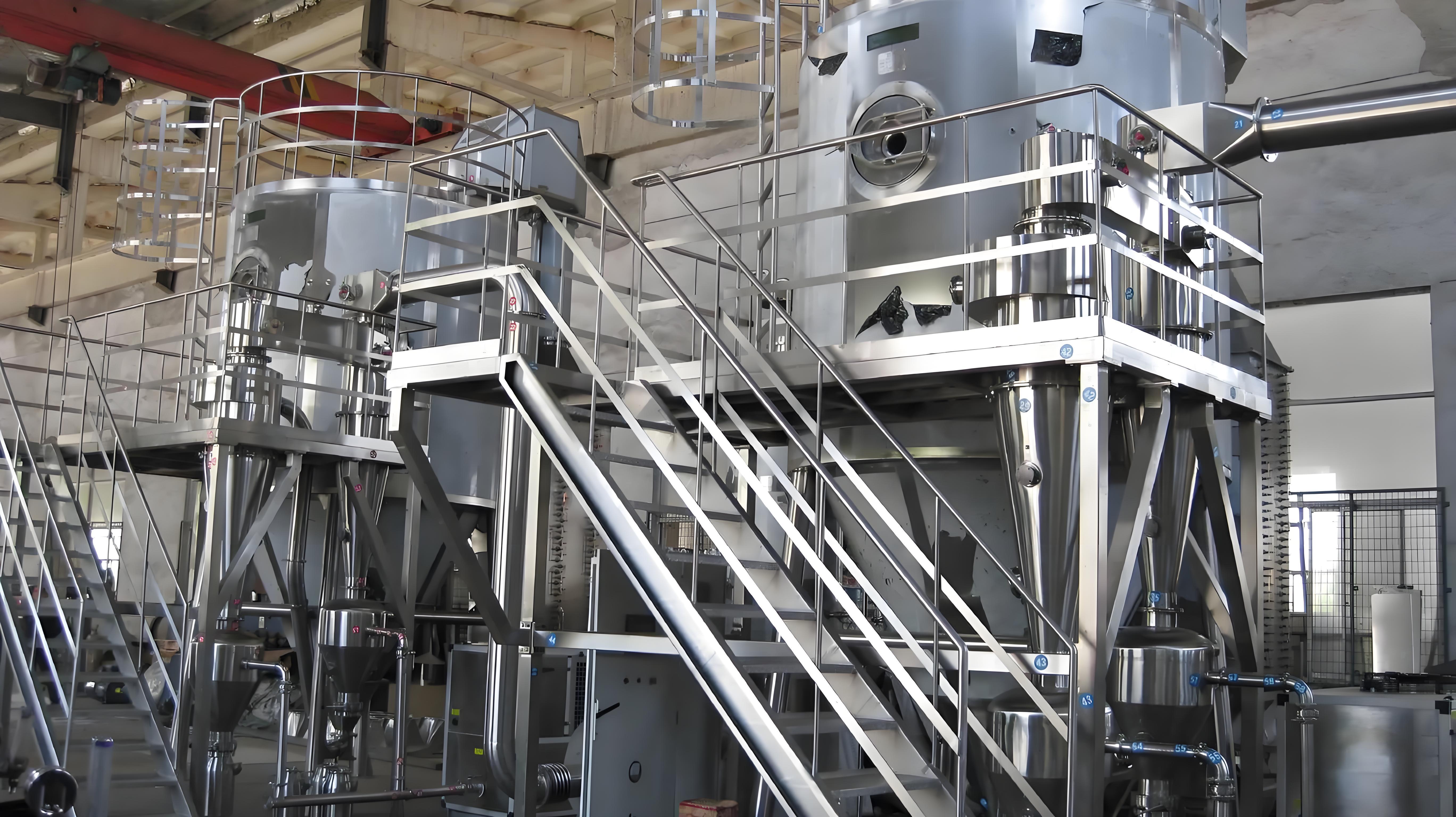

Hygienic Multi Function LPG-50 Industrial Spray Dryer High Working Effiency

Multi Function LPG-50 Industrial Spray Dryer High Working Effiency

Product Description

Spray drying is the most wide applied process in liquid process shaping and drying industry.The drying technology is most suitable for producing solid powder or practical products from liquid material,such as :solution,emulsion,suspension and pumpable paste states.For this reason,the particle size and distribution of the final products,residual water contents,mass density and the particle shape must meet the precise standard,spray drying is one of the most desired technologies.

Main Principle:

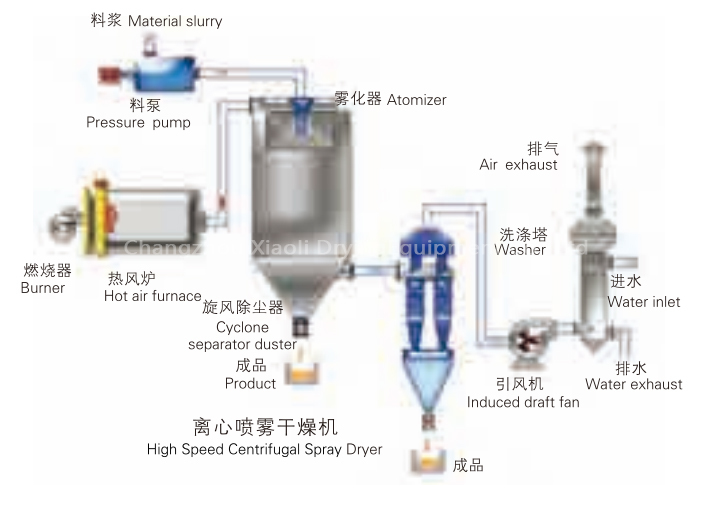

After air gets filtered and heated,it enters into an air distributor on the top of the dryer.The hot air enters into the drying room in a uniformly spiral form.Passing through the high speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through a very short time of contacting the hot air,materials get dried.The final products discharge continuously from the bottom of the drying tower and from the cyclones.The waste gas will be discharged from blower.

Feature:

Advanced Heat Pump Technology: By leveraging electric thermal systems, our dryers can reduce carbon footprint by 50-80% and lower primary energy consumption .

Intelligent Control Systems (PLC/HMI): Automated controls adjust drying parameters in real-time for consistent powder quality and energy savings.

High-Efficiency Insulation: Minimizes heat loss, improving thermal efficiency.

Flexible Integration: Designed for easy retrofitting to existing spray drying systems, allowing for upgrades without major downtime .

Hygienic Design: Made with food-grade stainless steel, ensuring compliance with food safety standards.

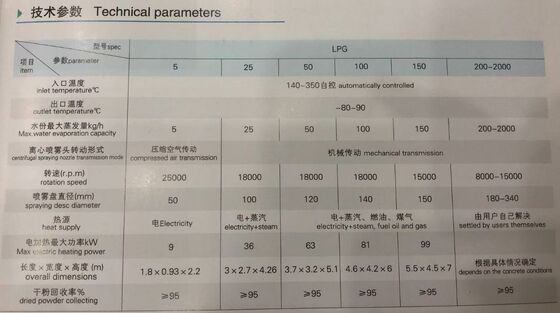

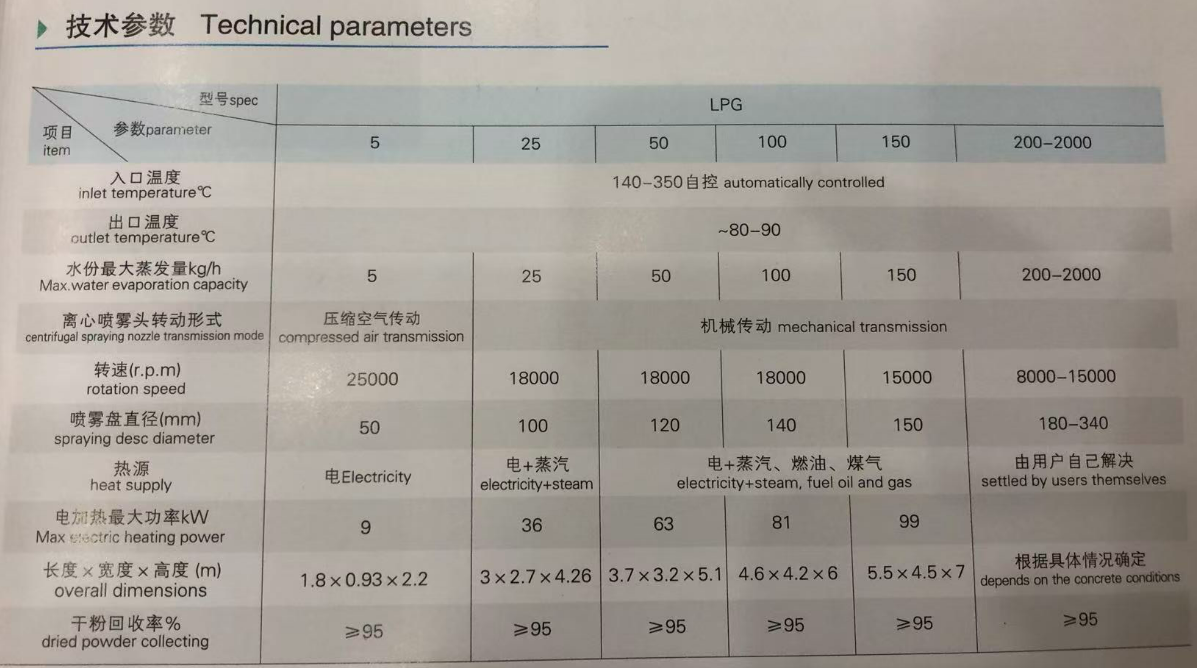

Technical Specifications

Note: The rate of moisture evaporation depends on the characteristics of the material, as well as the inlet air temperature and outlet temperature. When the outlet temperature is 90°C, the corresponding moisture evaporation curve is shown in the figure above (provided for selection reference). As products undergo continuous updates, relevant parameters are subject to change without prior notice.

Ordering Information

◎ Feedstock Name and Physical Properties: Solids content (or moisture content), viscosity, surface tension, and pH value.
◎ Properties of Dried Powder: Bulk density, permissible residual moisture content, particle size, and maximum permissible temperature.
◎ Production Capacity: Required output and daily operating hours.
◎ Available Energy Sources: Steam pressure and supply volume; electrical capacity; available supply of coal, oil, or gas.
◎ Control Requirements: Whether automatic control is required for inlet and outlet temperatures.
◎ Powder Collection Requirements: Whether a bag filter is required; environmental regulations regarding exhaust gas emissions.
◎ Other Special Requirements.
