| Name: | Paddel-Trockner | Stichwort: | Hohler Paddel-Trockner |
|---|---|---|---|
| wichtige Verkaufsargumente: | Energieeinsparung | Besonderheit: | Niedriger Energieverbrauch, hohe Effizienz |
| Hervorheben: | KJG52 Vacuum Paddle Dryer,Paddle Dryer for Industrial Sludge Treatment,Vacuum Hollow Paddle Dryer High Efficiency |
||

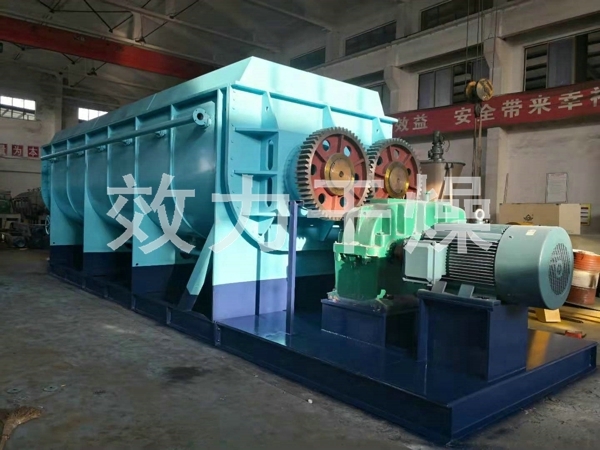

KJG52 Vacuum Hollow Paddle Dryer High Efficiency For Industrial Sludge Treatment
The KJG52 Vacuum Hollow Paddle Dryer is a premium industrial solution specifically designed for the dehydration and drying of challenging sludge materials. By integrating vacuum technology with our proven hollow blade agitation system, this equipment allows for drying at lower temperatures, which is critical for handling hazardous or heat-sensitive sludge while ensuring 100% containment of dust and vapors
With a substantial 52 $m^2$ heat transfer area, the KJG52 model provides the perfect balance of high processing capacity and precise thermal control, making it a cornerstone for modern environmental waste management
Technical Specifications
| project | KJG52 |
| model | |
| heat transfer area(m2) | 52 |
| Effective volume(m3) | 3.96 |
| Speed range(rmp) | 10-20 |
| power(kw) | 30 |
| Container width A(mm) | 1476 |
| Total width B(mm) | 1854 |
| Container width C(mm) | 5258 |
| Total length D(mm) | 8306 |
| Inlet/outlet distance E(mm) | 4954 |
| Center High F(mm) | 1066 |
| Total height H(mm) | 2032 |
| Inlet N(inch) | 11/2 |
| Outlet O(inch) | 11/2 |
Vacuum-Enhanced Efficiency: Operating under vacuum conditions lowers the boiling point of moisture, accelerating the drying process for thick sludge and slurry
High Heat Transfer Surface: The KJG52 model features a large effective area ($52 m^2$) and volume ($3.96 m^3$), ensuring high throughput in a compact footprint
Wedge-Shaped Self-Cleaning Blades: Densely arranged hollow blades create a washing effect that prevents sticky sludge from adhering to the shafts, maintaining optimal heat transfer at all times
Indirect Conduction Heating: Heat is transferred through the blade and jacket surfaces via steam or thermal oil (up to 320°C), eliminating heat loss through air and reducing energy consumption
Low Operating Costs: Designed for durability, the KJG52 minimizes wear and tear, resulting in very low maintenance requirements even in continuous 24/7 sludge processing
Installation structure diagram
Application Cases
| name | Jiangyin Farsun |
| Processing Equipment: | Paddle Dryer |
| Initial Moisture: | 70% |
| Final Moisture: | 25% |
| Processing Capacity: | 200 kg/h ~ 300 kg/h |
| Processing Equipment: | |
| Before processing | After processing |
|
|
Applications in Sludge Management
Industrial Sludge: Ideal for petrochemical, chemical, and pharmaceutical sludge that requires solvent recovery or strict emission control
Contaminated Materials: The vacuum-sealed environment prevents the leakage of odors or toxic dust, facilitating safe processing of contaminated waste
Solvent Recovery: Perfect for sludge containing valuable or hazardous solvents, allowing for high-efficiency recovery through closed-loop systems
FAQ
Q: Why choose the vacuum version of the paddle dryer for sludge?
A: Vacuum operation is essential for sludge that contains volatile organic compounds (VOCs) or materials that might degrade at high temperatures. It also improves safety when handling flammable waste
Q: What is the typical moisture reduction for sludge?
A: Based on our application cases, we can reduce initial moisture from 70% down to a final moisture of 25% at capacities exceeding 200-300 kg/h depending on the specific sludge type.
Q: Can the KJG52 handle highly viscous "glue-phase" sludge?
A: Yes. The special compression-expansion stirring effect of the wedge-shaped blades is specifically designed to break through the sticky phase of sludge, ensuring uniform drying
